insysta™

insysta™ combines the hi-tech engineering of Hager with aesthetics that will adorn the walls of any home or building.
The right choice of switching systems to enhance the décor of your living space.

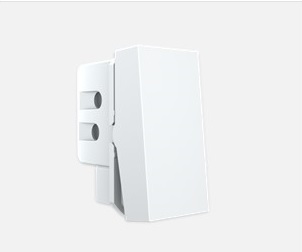

Switches

Complies with IS 3854 : 1997
Guaranteed for 1,00,000 switching operations*
‘X’ rated – no need to de-rate for fluorescent loads
Long life LED with 7,00,000 operations
Terminal screws are backed out and captive
Laser marked technical and installation information

*Applicable to 6A/10A/16A/20A 1 Module switches only

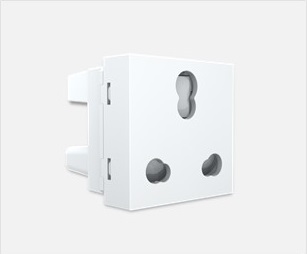

Sockets:

Complies with IS 1293 : 2019
Double sided shutter for easy 2 pin plug insertion
Terminal screws are backed out and captive
Clearly marked technical and installation information
Laser marking

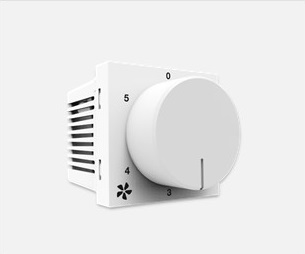

Fan Regulator & Accessories

Fan regulator complies with IS 11037:1984
360º rotary type fan regulator
Fan regulators and Dimmers with inbuilt fuse for extra safety for user
Single RJ11 and RJ45 with label holders & spring operated safety shutters for dust protection when not in use
International jacks for high speed data transmission

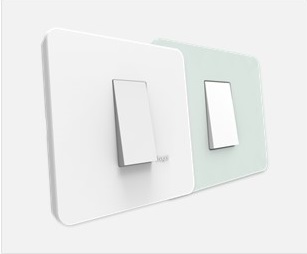

Front Plates

Made from fire retardant UV stabilized high performance plastic.
Cover plate compensation- to adjust with uneven wall surfaces.
Thicker front plates the thicker front plate ensures strength & durability which avoids breakage of higher modules.
White and Black Glass cover plates: Hardened and polished with chamfered edges.

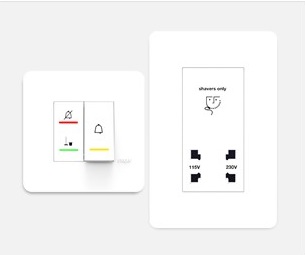

Hospitality Range:

insysta™ hospitality range provides special solutions for hotel applications. A wide range of products is available for more convenience & functionality.

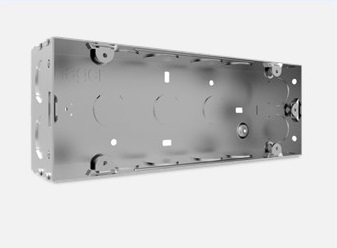

Metal Boxes

Rust proof design with Bright and galvanized protective coating.
Available in 2 – 18Module sizes.
2 – 4M in 0.8mm thickness, 6 – 18M in 1mm thickness.
Rib structure on the edges for strength.
Earthing screw provision.
Easy removable knockouts on all sides.
Protection of Floating clamp.

Certified Standards

Switches - IS 3854 : 1997 (Switches for domestic and similar purposes)
Sockets - IS 1293:2019 (Plugs and socket-outlets of rated voltage up to and including 250V and rated current up to 16A)
Fan Regulator - IS 11037 : 1984 Electronic Type Fan Regulators
RoHS Compliant- Complete range complies to RoHS standards.
