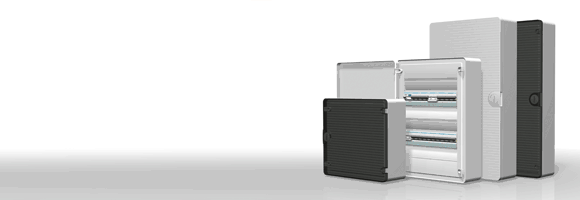

Golf enclosures: a complete range of consumer units

Golf range offers compact, sleek and light weight enclosures for mounting of modular devices in residential & commercial applications.Golf enclosures are made up of insulated engineering plastic material in RAL 9010 color to match contemporary interiors of modern homes & offices.

Golf enclosures

Technical details

  • Conforms to IEC 60695-2-1
  • Mounting - Surface & Flush mounting version
  • No. of ways - 4 modules to 48 modules
  • No. of rows - 1, 2,3 and 4 rows
  • Ingress protection level - IP40
  • Insulation class - Class II (double insulation)
  • Impact resistant level - IK07
  • Option of opaque or transparent door




Features & benefits

  • Class -II double insulation
- Made up of insulated material
- Shock proof enclosures,added safety to user
- Light weight & sleek, ideal for walls with lesser depth
- No worry about paint peel off, rusting or enclosure earthing

  • Versatile range
- Choice of surface or flush mounting
- Choice of opaque or transparent door
- Reversible doors at site offers great convenience
- Integrated cable management system
- Flexibility to mount neutral / earth bars on top or bottom
- Optional key lock
